Access Client Solutions Your Gateway to Seamless System Administration

What is Access Client Solutions (ACS)?

Access Client Solutions is IBM’s strategic interface for managing IBM i environments. It replaces older tools like IBM i Access for Windows and offers a unified, platform-independent experience. Built on Java, ACS runs seamlessly on Windows, macOS, and Linux, making it accessible to a broad user base.

Key Features of ACS

The key features of ACS are as follows:

• Comprehensive Management: ACS consolidates many of the most used tasks for managing IBM i systems into a specific location, making it easier to perform various administrative functions.

• 5250 Emulation: It emulates the IBM 5250 display and printer for interaction with IBM i systems.

• Data Transfer: ACS supports data transfer like IBM i Access for Windows, including integration with Excel and OpenOffice, and supports various file formats like .xlsx and .ods.

• Remote Access: It enables remote command execution, spooled file management, and other remote operations, making it especially useful for managing systems from various locations.

• User-Friendly Interface: The interface is designed to be intuitive, so users will find it easy to navigate and perform tasks.

• Cross-Platform Compatibility: ACS provides flexibility for different user environments, as it is compatible with multiple operating systems, including Windows, Linux, and macOS.

• Enhanced Security: The software includes secure connections and data transfer capabilities, protecting sensitive information.

Prerequisites for Installation

1. Administrative Rights: You must have administrative rights on the target PC or server.
2. Java Runtime Environment (JRE): ACS requires Java 8.0 or higher. It is compatible with the latest versions of Java12.
3. System: ACS runs on most operating systems supporting Java, including Windows, Linux, and macOS2 versions.
4. Disk Space: Ensure you have sufficient disk space for the installation files and the application itself.

Steps to Download IBM Access Client Solutions (ACS)

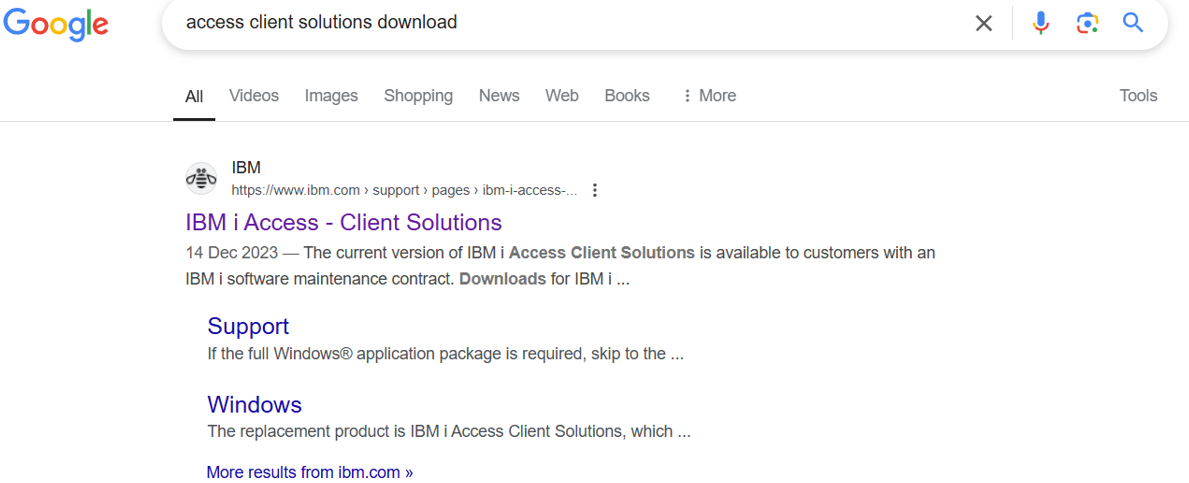

Step 1: Visit the IBM Website

Open your preferred web browser and visit the IBM Access Client Solutions page.

Step 2: Navigate to the Download Section

Scroll down to the Download section. Here, various versions of ACS are available for different operating systems.

Step 3: Select the Appropriate Version

Please select the version that matches your operating system (Windows, Mac, Linux, etc.) and click on the corresponding link to proceed.

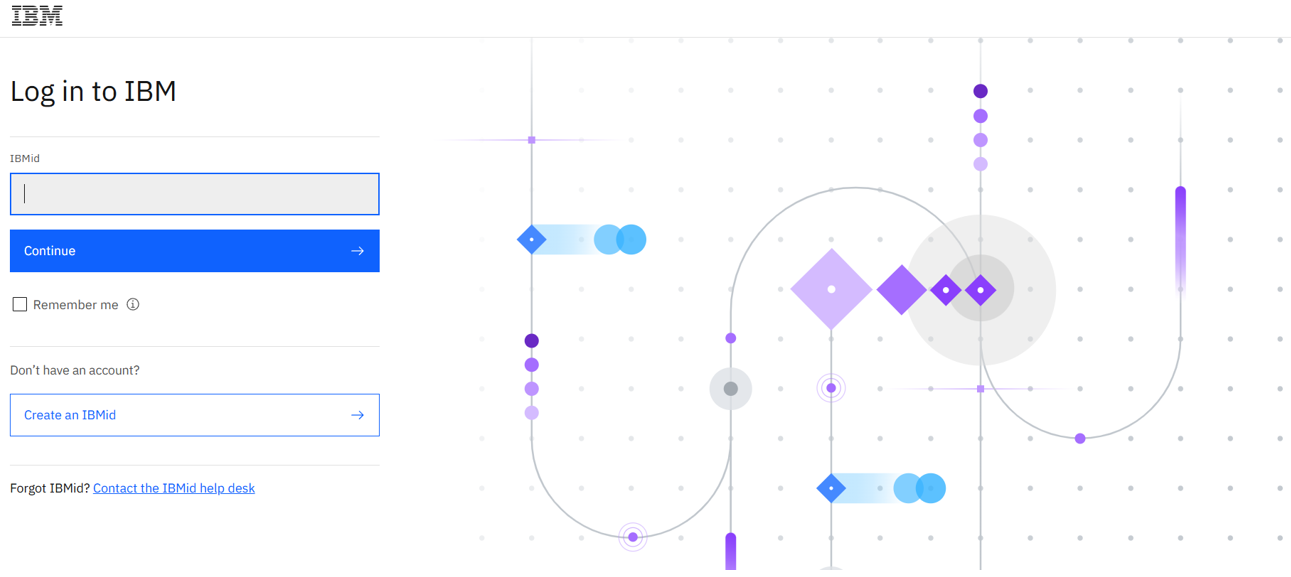

Step 4: Log In to Your IBM Account

You will be prompted to log in to your IBM account. If you do not have an account, you will need to create one by following the on-screen instructions to complete the registration process.

Step 5: Accept the License Agreement

After logging in, you must accept the license agreement. Read the terms and conditions, then click Accept to continue.

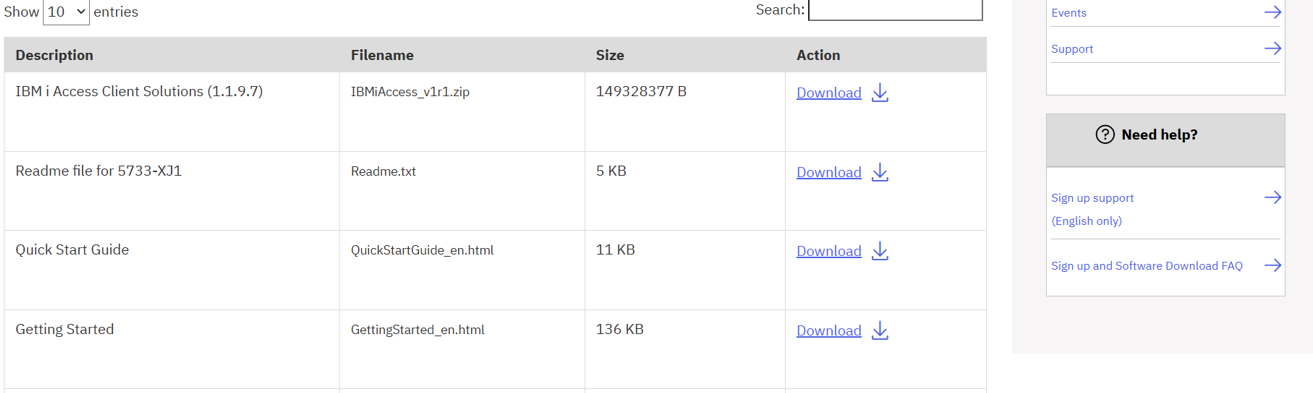

Step 6: Download the Installer

Once the license agreement is accepted, the download should begin automatically. If it does not, click the Download button to start the process manually.

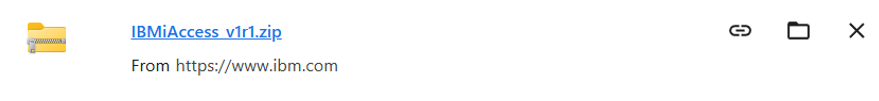

Step 7: Install IBM Access Client Solutions

Once the download is complete, locate the installer file on your computer and double-click it to begin the installation process. Follow the on-screen instructions to finish the installation.

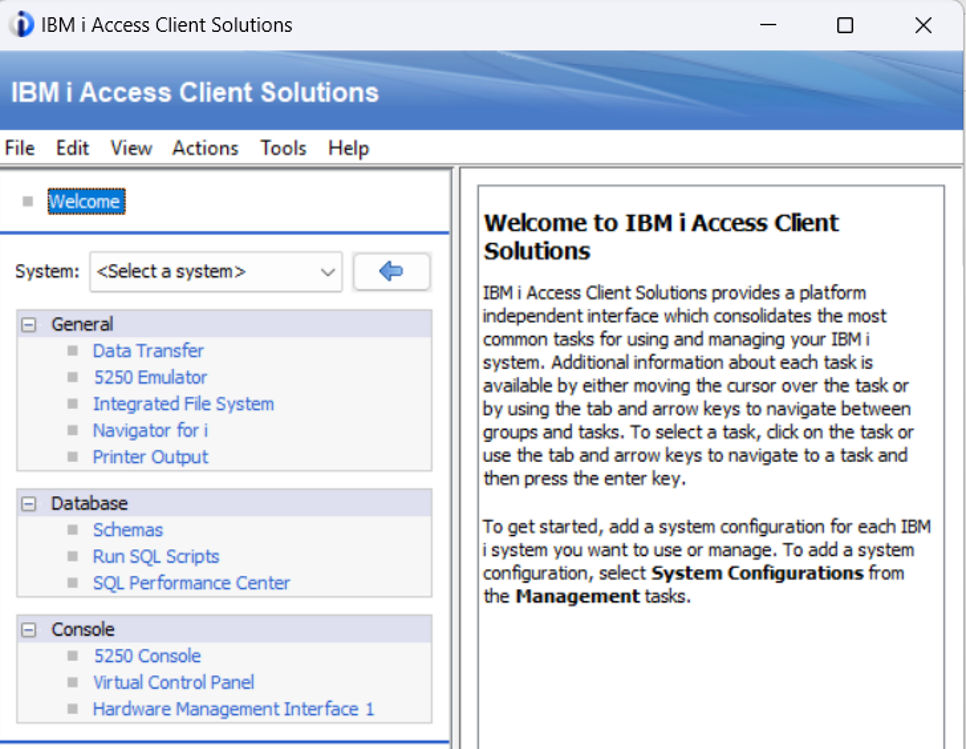

Step 8: Launch IBM Access Client Solutions

Once installed, you can launch IBM Access Client Solutions from your desktop or start the menu. Configure your connection settings to start using the tool.

Installation Guide for IBM ACS on Different OS Platforms

Installation for Windows

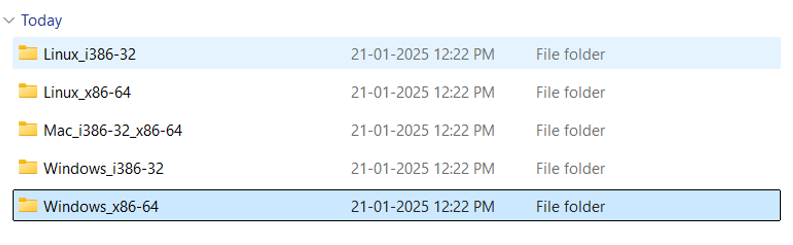

Step 1: Extract the Package

• Locate the downloaded ZIP file.
• Right-click and select “Extract All” to unzip the contents.

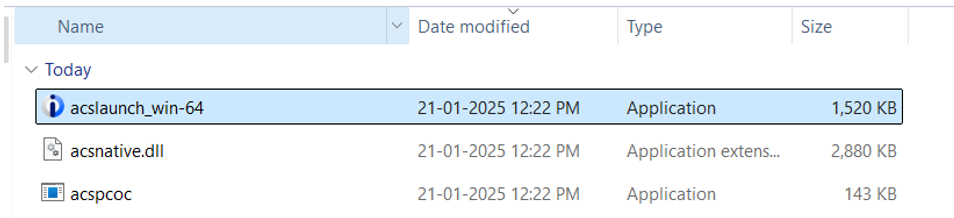

Step 2: Run the Installer

• Open the extracted folder.
• Double-click on acslaunch_win-32.exe to start the installation.

Step 3: Follow the On-Screen Instructions

• Welcome Screen: Click “Next” to proceed.

License Agreement:

• Read the license agreement, select “I accept the terms in the license agreement,” and click “Next.”

Destination Folder:

• Choose the installation folder or leave it as default, then click “Next.”

Ready to Install:

• Review your settings and click “Install” to begin the installation.

Installation Progress:

• Wait for the installation to complete. This may take a few minutes.

Completion:

• Once the installation is complete, click “Finish” to exit the installer.

Step 4: Launch IBM ACS

• Once installed, you can find IBM ACS in your Start Menu.
• Click on the IBM ACS icon to launch the application.

Installation on macOS

Step 1: Extract the Package

• Locate the downloaded ZIP file.
• Double-click to unzip the contents.

Step 2: Run the Installer

• Open the extracted folder.
• Double-click on acslaunch_mac.dmg to mount the disk image.
• Drag the IBM ACS icon to the Applications folder.

Step 3: Follow the On-Screen Instructions

• Welcome Screen:
• Click “Continue” to proceed.

License Agreement:

• Read the license agreement and click “Agree” to accept the terms.

Destination Folder:

• Drag the IBM ACS icon to the Applications folder.

Completion:

• Once the installation is complete, you can close the installer window.

Step 4: Launch IBM ACS

• Open the Applications folder.
• Double-click on the IBM ACS icon to launch the application.

Installation on Linux

Step 1: Extract the Package

• Open a terminal window.
• Navigate to the directory where the ZIP file was downloaded.
• Use the command unzip <filename>.zip to extract the contents.

Step 2: Run the Installer

• Navigate to the extracted folder.
• Use the command java -jar acslaunch.jar to start the installation.

Step 3: Follow the On-Screen Instructions

• Welcome Screen:
• The installer will open in a graphical window. Click “Next” to proceed.

License Agreement:

• Read the license agreement, select “I accept the terms in the license agreement,” and click “Next.”

Destination Folder:

• Choose the installation folder or leave it as default, then click “Next.”

Ready to Install:

• Review your settings and click “Install” to begin the installation.

Installation Progress:

• Wait for the installation to complete. This may take a few minutes.

Completion:

• Once the installation is complete, click “Finish” to exit the installer.

Step 4: Create a Desktop Shortcut (Optional)

• You can create a shortcut for easier access. The method varies depending on your desktop environment (GNOME, KDE, etc.).

Post-Installation Configuration

Step 1: Configure Connection Settings:

• Open IBM ACS. Go to the “Management” section and configure your connection settings to connect to your IBM i system.

Step 2: Customize Preferences:

• Navigate to the “Preferences” section to customize the application settings according to your needs.

Conclusion

Access Client Solutions is more than just a tool—it is a gateway to a more efficient and modern IBM i experience. Whether you manage complex systems or optimize workflows, ACS simplifies and enhances your operations. The intuitive interface of ACS combined with robust functionality allows users to accomplish more in less time.

Get the most out of your tools by not letting outdated ones get in your way. Transform the way you interact with your IBM i (AS400 systems) with Access Client Solutions. Let us get started on your journey to streamlined operations!
