From Overhead to Overdrive: A Step-by-Step Guide to Deleting Journal Receivers in IBM i

Is your IBM i system feeling sluggish?
OR
Are you tired of sifting through outdated data?

       Then…,

It is time to take control. Learn how to clear the clutter and boost your system’s performance.

Understanding Journal Receivers

Journaling is a vital part of database management. At its core, journal receivers are files that store a detailed history of every change made to your database. They act like a “black box” for your data, capturing every alteration.

The journal itself links your database file to these receivers, controlling how and where these changes are recorded.

The actual journal entries are stored in the journal receiver. The journal “links” the file and the receiver. It is recommended to give the journal receiver the same name as the journal, with a zero or one-digit suffix. Journal receivers should be placed in the same library as the file.

As part of the application logic, there may be occasions when we need to delete journal receivers (*JRNRCV) in an RPG program. Journal receivers store the modifications made to a database file.

How to Delete Journal Receivers

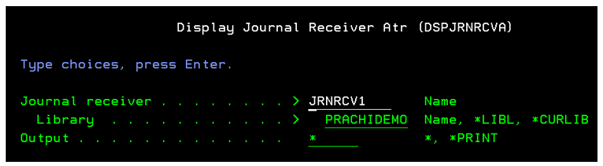

Step 1:  Choose the journal receiver you want to delete.

First, we must determine which specific journal receiver we want to remove. This can be done programmatically by retrieving the receiver information using the RPG command DSPJRNRCVA (Display Journal Receiver Attributes).

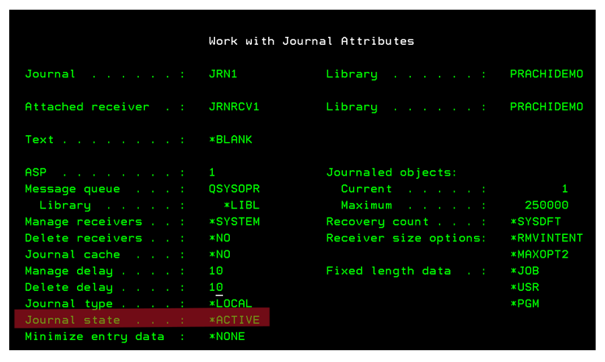

Step 2:  Identify whether the receiver is active or not.

Before deleting a journal receiver, we should determine whether it is active or inactive. Receivers that are not active no longer receive journal entries, but those that are active continue to receive them. To prevent data loss, you must ensure the receiver is inactive before proceeding.

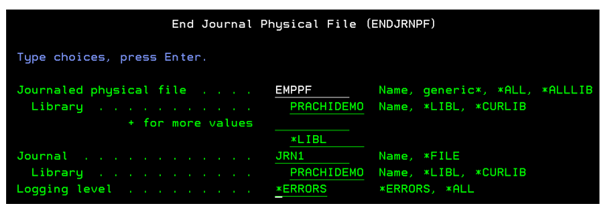

Step 3:  On the receiver, stop journaling (if active).

Before deleting the receiver, we must stop journaling on it if it is still in use. To do this, issue the ENDJRNPF (End Journal File) command, specifying the receiver’s name and library.

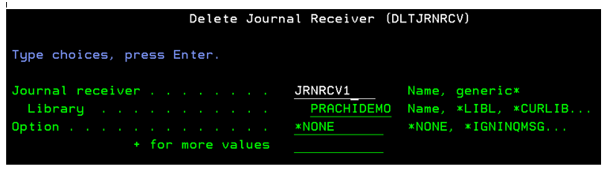

Step 4:  Deletion of Journal Receiver

Once we ensure that the receiver is inactive or that journaling has been completed, we can proceed with deleting it. The DLTJRNRCV (Delete Journal Receiver) command can be used for this. Specify the receiver’s name and library and confirm that you are authorized to delete the data.

Step 5:  Address Error Conditions

It is crucial to handle any potential issues that might arise during the deletion process. We can handle the error using the built-in function (%Error) or MONITOR block. Depending on the application’s requirements, we should consider logging error messages or taking the appropriate action.

Key Takeaways

• There are two types of journal receivers: user-managed and system-managed.
• Users create user-managed journal receivers that users can delete.
• The system creates system-managed journal receivers that the user cannot delete.
• To delete a journal receiver, you must first detach it.
• Once the journal receiver is detached, you can save it or delete it.
• If you save the journal receiver, you can restore it later.
• If you delete the journal receiver, the data being journaled to the receiver will be lost.

Note: It is important to note that deleting a journal receiver can have implications for data recovery. To recover data from a journal, you must not delete the journal receiver that contains the data.

Additional Tips for Deleting Journal Receivers

• Ensure that you have a backup of the data being journaled before deleting a journal receiver.
• If you are deleting a system-managed journal receiver, contact your system administrator for assistance.
• Be sure to detach the user-managed journal receiver before deleting it.
• Deleting journal receivers can be a time-consuming process, so it is important to plan accordingly.

Conclusion

Deleting journal receivers is a critical housekeeping task in IBM i to ensure efficient use of disk space and system resources. By following the outlined steps—detaching, saving, and safely deleting—you can manage journal receivers without risking data loss or disruption.

Remember, preparation is key. Always validate that your backups are complete, and the journal receiver is no longer needed before deletion.

Have you encountered challenges managing journal receivers? Share your experience with us or get in touch with our IBMi expert development team for assistance.
